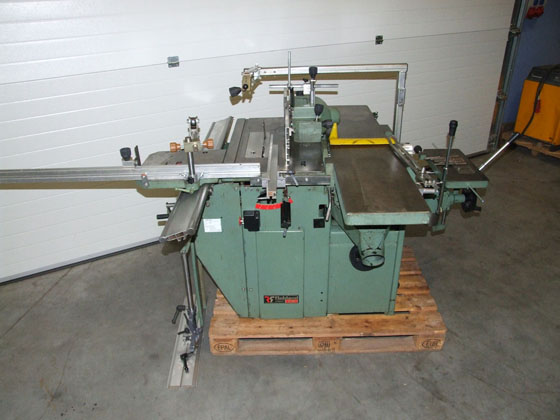

Combined machine 5-way ROBLAND X310
Planer and thicknesser
Jointer planer width 310 mm
Working height thicknesser 230 mm
Shaft with 3 knives
Jointer table length 1400 mm
Plane shaft diameter 70 mm
Shaft speed 5200 rev / min
Stop Swivel: 90 ° -45 °
Mechanical indication of the thickness planer
Feed thicknesser. 7 m / min
Maximum cutting depth of 5 mm
Working height 850 mm
motor power of 3 kW
saw
Blade angle of 90 ° -45 °
Car length 1360 mm
Path of sliding table 960 mm
Cutting width right 450 mm
Saw blade speed 3300 U / min
Cutting height 85mm with 250 mm blade
Spindle diameter 30 mm
Table size 850x450 mm
Sliding table size 340 x 370 mm
motor power 3 kW
milling machine
Spindle 30 mm
Maximum tool diameter 180 mm
Spindle height adjustment 140 mm
Spindle clamping length 125 mm
Table opening 200 mm
Spindle speeds 3000 and 6000 r / min.
Fence with fine adjustment
Table size 800x450 mm
motor power 2,2/3 kw
Mortising
Clamping range chuck 0-16 mm
Drill width max. 165 mm
Drill depth max. 140 mm
Height adjustment 85 mm
Table size 200 x 425 mm
Drilling speed 5200 rev / min
General:
The machine has 3 engines, each with a power of 3 kW
Working height 850mm
weight 680kg
Accessories:
key
Knife setting gauge
operating Instructions
|
